Sentinel C28WE
Category: Leak Test Instruement
Single test configurable DP testing in a wall-mount configuration
17 September 2025
View 168 View

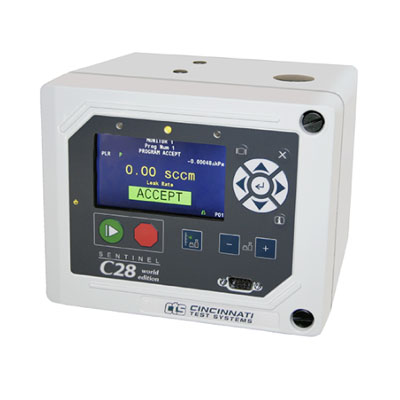

Sentinel C28 WE
The Sentinel C28 is a versatile and highly advanced multi-function leak test instrument that provides high-resolution pressure decay, vacuum decay and occlusion leak testing with speed and repeatability in a compact wall-mount design.
Single Test Configurable for Pressure or Vacuum Decay Test Requirements
With the C28WE you can perform the following types of tests:
- Pressure/Vacuum decay-pressure change
- Pressure/Vacuum decay-with certified mass flow leak standard
- Pressure/Vacuum decay-pressure change/time
- Occlusion test (vacuum or pressure test)
Product Highlights
- Test Pressure Range: -14.5 to 200 psig
- Storage for 32 pre-programmed test sequences
- Test Program can be selected through keypad, or digital binary input signals
- Test results evaluation is fixed (Fail/Pass/Fail)
- Self-test diagnostic verification
- Test result output format is configurable
- 6 inputs / 3 outputs with 1 programmable tooling motion
- EtherNet/IP™ communication
- Simple, multilingual operator interface
